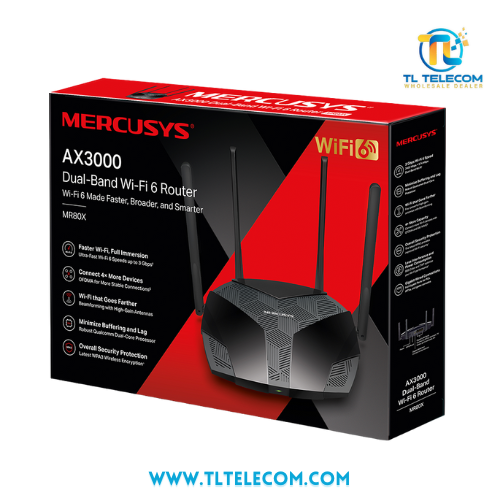

MERCUSYS MR80X AX3000 WiFi 6 Router

Message on Whatsapp

Specification

Wireless
Wireless Standards	Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
WiFi Speeds	2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Reception Sensitivity	11g 6Mbps: -97dBm 11g 54Mbps: -79dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -77dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -75dBm 11ac VHT40 MCS9: -71dBm 11ac VHT80 MCS9: -67dBm 11ax HE20 MCS11: -67dBm 11ax HE40 MCS11: -64dBm 11ax HE80 MCS11: -61dBm
Transmission Power	2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (Band 1 & 2) 5 GHz < 30dBm (Band 3)
Wireless Security	WPA / WPA2-Personal, WPA2 / WPA3-Personal, WPA2-Enterprise, WPA/WPA2-Enterprise
Wireless Functions	Enable/Disable Wireless Radio, WMM
Hardware
Dimensions	208.8 × 171.6 × 41.7 mm (8.2 × 6.8 × 1.6 in)
Interfaces	1× Gigabit WAN Port + 3× Gigabit LAN Ports
Button	Reset/WPS Button
Antenna Type	4× 5 dBi Fixed Omni-Directional Antennas
Software
WAN Type	Dynamic IP / Static IP / PPPoE / L2TP / PPTP
Management	Access Control, Local Management, Remote Management
NAT Forwarding	Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security	SPI Firewall, IP and MAC Address Binding
Guest Network	2.4 GHz and 5 GHz Guest Networks
DHCP	Server, DHCP Client List
VPN Server	OpenVPN / PPTP / L2TP / IPSec VPN Server and Clients
Others
Package Contents	• AX3000 Wi-Fi 6 Router (MR80X) • Power Adapter • Quick Installation Guide • RJ45 Ethernet Cable
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% Non-Condensing Storage Humidity: 5%~90% Non-Condensing

OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streaming, and downloading, all at the same time.
MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
WiFi THAT GOES FARTHER – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
SMART CONNECT – Intelligently chooses the best available band for each device

Warranty 1 Year
